Automating Data Generation and AI Inference with myCobot 280 PI & iPhone App

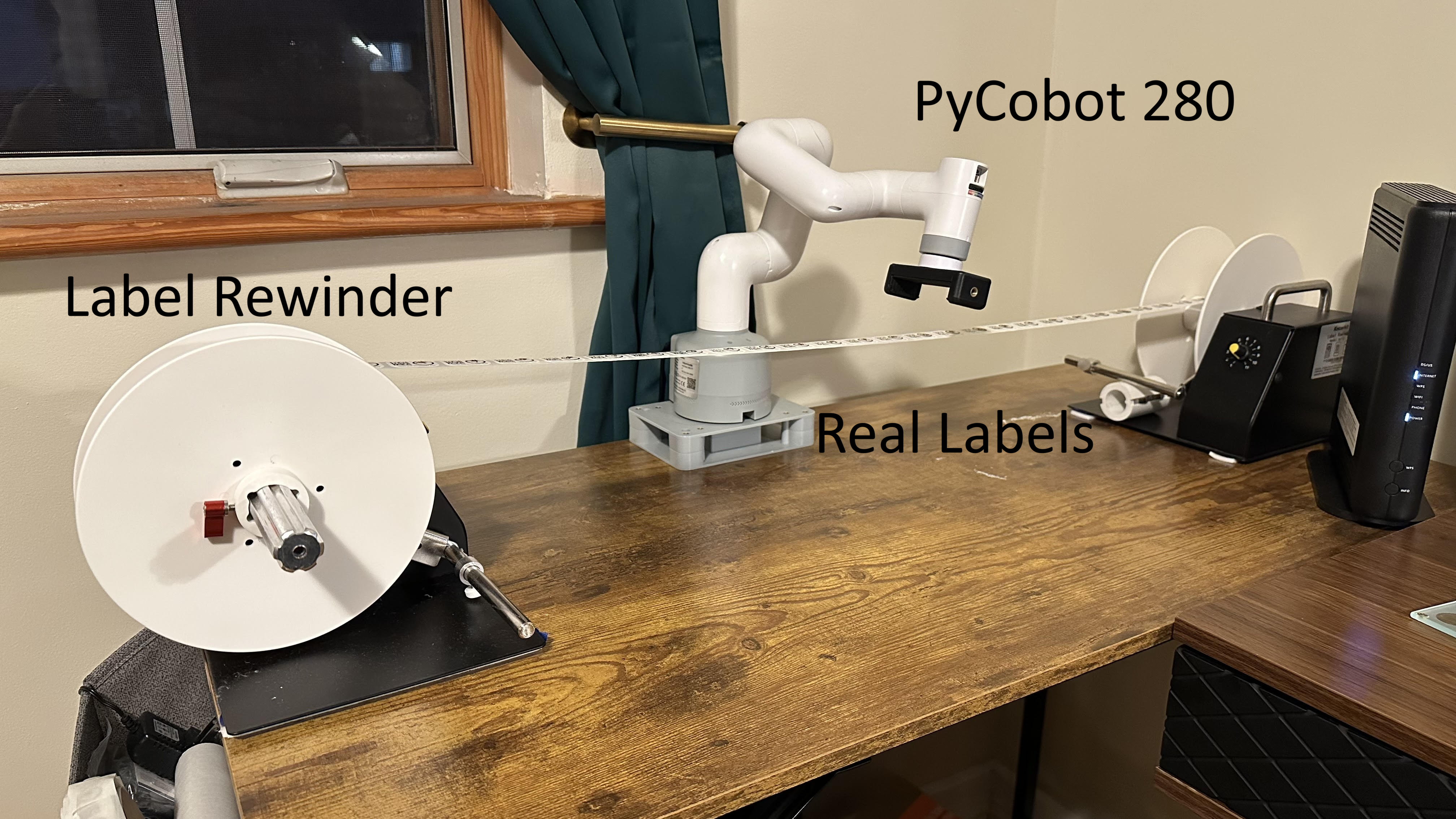

The myCobot 280 PI robotic arm automates dataset creation by mimicking human hand movements. Cameras capture images of labels on motorized rewinders, simulating real-world motion. This setup reduces manual effort while ensuring consistency for object detection tasks. The companion iPhone app (demo below) runs on-device vision in the field—not only 3D QR authentication, but also a live screen / display signal (laptops and monitors), where glare, moiré, and weak box-like boundaries made a standard detector a poor fit.

Automated Dataset Generation, Object Detection, and Mobile Deployment

A demo video showcasing the app's functionality and results.

Overview

As a Machine Learning Engineer at Zortag, I automated dataset generation, optimized object detection models, and shipped an iPhone app for real-time inference. Zortag’s 3D QR stack needs high-accuracy authentication; the same product flow also needed the phone to know when a laptop or monitor screen was in view. That second problem sounds simple, but in practice screens are not “nice” detection targets: large regions, uneven texture, glare, and moiré meant a YOLO-style bounding-box model we tried first kept missing or jittering on real hardware.

I addressed that with a CLIP ViT-L/14@336 image encoder feeding a small MLP for a stable yes/no screen decision, with frames streamed over WebSockets, multi-crop inference at test time, EMA smoothing, and a short hysteresis window so the UI did not flicker—end-to-end roughly sub-second behavior on live video. The robotics and QR pieces are what most people see first; the screen pathway was the parallel engineering thread that made the whole authentication story usable outside a lab.

Key Components:

  • Robotic arm automation for scalable data collection
  • YOLOv8 fine-tuning (99.84% accuracy) for QR / label tasks
  • Synthetic data generation
  • iPhone app: CoreML + SwiftUI, QR inference plus the CLIP + MLP screen head above (video demo at the beginning)

Note: Code and datasets are proprietary.

Key Contributions

1. Robotic Automation & Dataset Generation

  • Programmed myCobot 280 PI to capture multi-angle images of 3D QR codes via human-like motions.
  • Motorized label rewinders simulated real-world movement, reducing manual effort by 90%.

2. Model Optimization

  • Fine-tuned YOLOv8 for anomaly detection using hybrid real/synthetic data, achieving 99.84% detection accuracy for fake 3D QR codes.
  • Automated labeling pipelines eliminated manual annotation errors.

3. iPhone App for Inference

  • Developed a native iOS app to run optimized YOLOv8 (CoreML) for 3D QR work on-device.
  • Added live screen / display detection for field use: CLIP + MLP with streaming, multi-crop evaluation, and temporal smoothing so the app could trust the signal in uneven lighting.
  • Offline-capable where the models allow it; SwiftUI UI aimed at operators in the field.

Methodology

  1. Robotics: Python/ROS-controlled arm trajectories with OpenCV-based image capture.
  2. ML Pipeline:
    • Synthetic data augmentation (varied lighting/backgrounds).
    • YOLOv8 fine-tuning via PyTorch and CoreML conversion for iOS.
  3. Mobile Deployment:
    • Optimized model for edge performance (CoreML).
    • SwiftUI frontend with camera integration.

Results & Impact

  • Efficiency: 90% faster data generation vs. manual methods.
  • Accuracy: 99.84% detection under real-world conditions.
  • Deployment: iPhone app enables field authentication without cloud dependency.

Future Work

  • Expand the training dataset to cover more real-world cases.
  • Port to Android for broader adoption.
