A Dataset of 3M Single-DOF Planar 4-, 6-, and 8-Bar Linkage Mechanisms With Open and Closed Coupler Curves for Machine Learning-Driven Path Synthesis

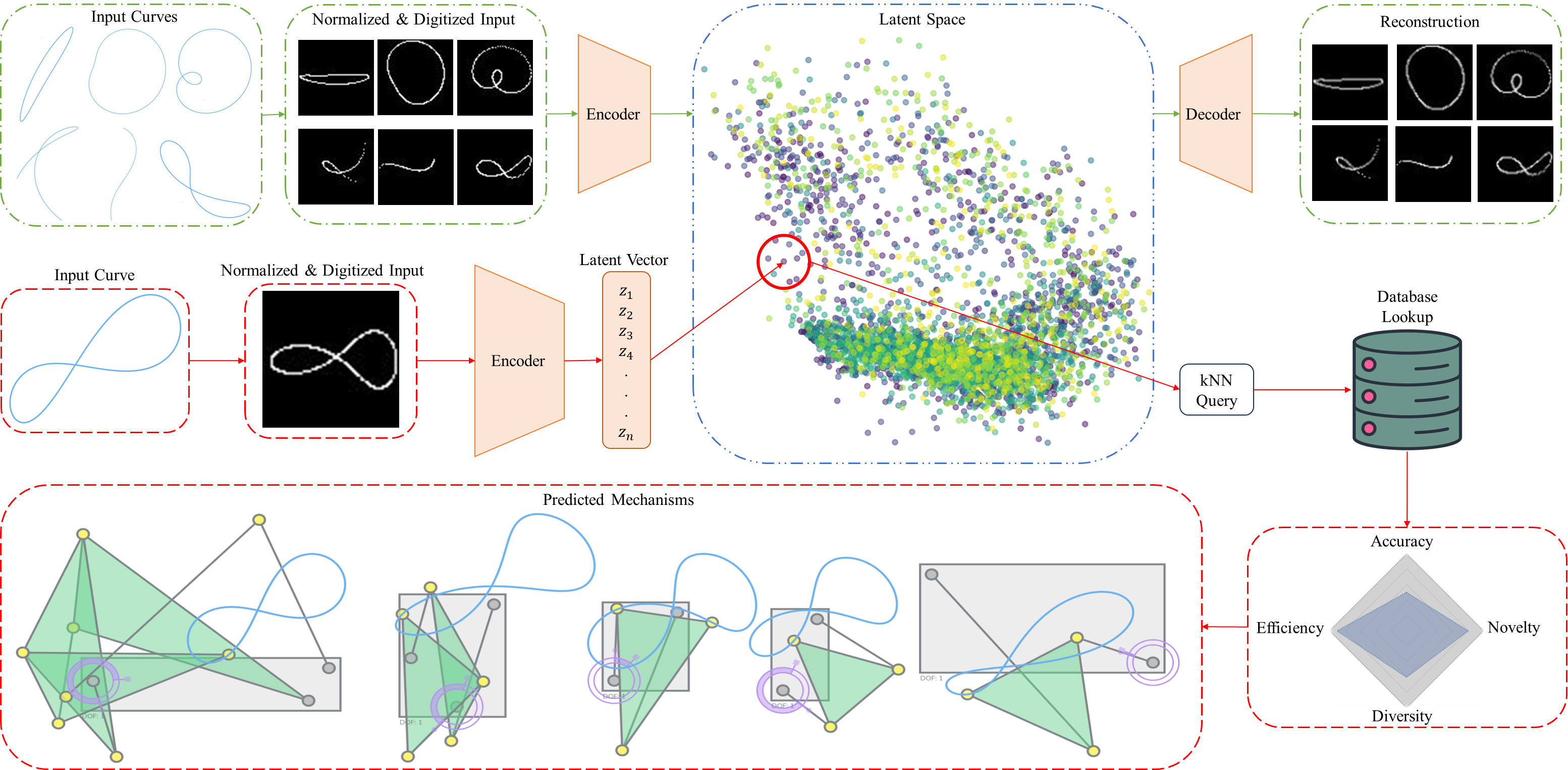

Overview: the training phase and inference phase steps are bounded by green dash-dot lines and red dashed lines, respectively.

Overview

This paper introduces a groundbreaking dataset containing nearly 3 million single-degree-of-freedom planar mechanisms, encompassing 4-bar, 6-bar, and 8-bar linkage mechanisms with both open and closed coupler curves. The study addresses a critical gap in the field of machine learning-driven path synthesis by presenting the first comprehensive dataset of this magnitude and diversity.

By offering a standardized evaluation framework with six key metrics — accuracy, novelty, diversity, robustness, computational efficiency, and scalability — this work sets a benchmark for comparing machine learning models for mechanism synthesis. Additionally, it proposes a novel pipeline using Variational Autoencoders (VAEs) combined with k-nearest neighbor (k-NN) searches to synthesize mechanisms, demonstrating the dataset’s utility and effectiveness.

Access the dataset on Kaggle

Key Contributions

  1. Comprehensive Dataset:

    • Includes 4-bar mechanisms with revolute and prismatic joints and higher-order mechanisms (6-bar and 8-bar).
    • Encompasses open and closed curves, filling gaps in prior datasets like LINKS.

  2. Standardized Metrics:

    • Proposes six evaluation metrics to objectively compare machine learning approaches in mechanism design.

  3. Innovative Methodology:

    • Demonstrates the potential of VAEs to represent and synthesize diverse coupler curves.
    • Introduces latent space exploration to generate diverse solutions for a given input curve.

  4. Evaluation of Latent Space:

    • Explores optimal latent dimensions for VAE models, concluding that a 10-dimensional latent space balances performance and efficiency.

  5. Real-World Applications:

    • Validates the dataset’s practical relevance by testing it with novel coupler curves using an application like MotionGen.

Dataset Highlights

  • Size: ~3 million samples of 4-bar, 6-bar, and 8-bar mechanisms.
  • Structure: Organized into folders containing normalized coupler curves and corresponding Cartesian coordinates.
  • Usability: Includes scripts for loading and preprocessing data, adhering to FAIR principles (Findable, Accessible, Interoperable, Reusable).

Methodology

  1. Dataset Generation:

    • Uses a simulation algorithm capable of handling revolute and prismatic joints.
    • Mechanism filtering ensures practical designs by limiting extreme link ratios and joint overlaps.

  2. Variational Autoencoders:

    • Trained on coupler curves embedded as 64x64 pixel images.
    • Maps curves to a latent space, enabling efficient retrieval of similar mechanisms.

  3. Evaluation Metrics:

    • Analyzes accuracy, novelty, and diversity of generated mechanisms.
    • Assesses robustness against noisy and unseen data.

Results and Insights

  • Accuracy: A 10-dimensional latent space achieves optimal accuracy with minimal computational overhead.
  • Diversity: Generated mechanisms span all types in the dataset, ensuring comprehensive representation.
  • Novelty: Mechanisms generated exhibit significant variation, demonstrating the model’s ability to synthesize innovative designs.
  • Robustness: Maintains performance across noisy inputs and generalizes to unseen coupler curves.

Future Directions

The study highlights potential expansions, including:

  • Extending the dataset to include higher-order mechanisms (spherical and spatial).
  • Integrating conditional VAEs to allow user-defined mechanism constraints.
  • Adapting the approach to more complex motion generation problems.

Applications

This dataset and methodology have broad applications in robotic path synthesis, automated design systems, and computational kinematics, paving the way for innovations in mechanism design.
